CS4 Inground

CC LED INGROUND

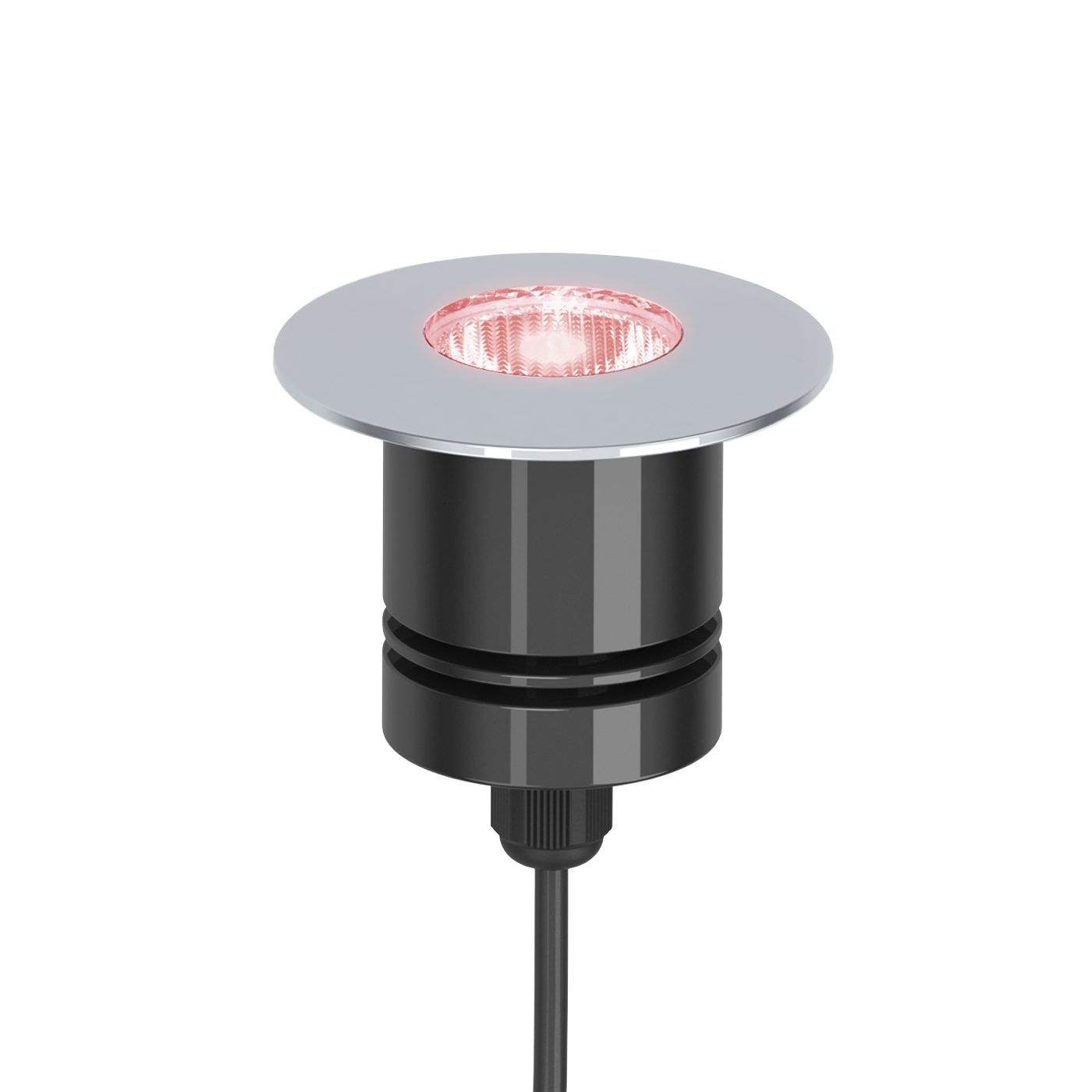

Our CS4 Inground encases the same technology of our popular Colour Source 4 downlights into an IP67 rated anodised aluminium housing with 316 stainless steel bezel. Perfect for external deck lighting.

Product Code: CS4-IGM- RGBW / RGBA

Compatible With: LUD 48 & LUD 192

Downloads

Specification
Wiring Diagram
Brochure

Technical Specifications

Channels 4
Wattage 4.8W
IP Rating IP67
LED Type RGBW / RGBA
Housing Cut Out 46mmØ
Lens Options 15°/25°/40°
LED Connection RJ45
Housing Anodised Aluminium
Bezel 316 Stainless Steel
Lumen Output 284lm [RGBW], 227lm [RGBA]
Operating Temp Range -20 to 30 °C
Compatible With LUD48 & LUD192

More information >

Frequently Asked Questions

Below you will find answers to the most common questions you may have on the CS4 Inground. Also please feel free to Contact Us if you still can't find what you are looking for.

1What do I need to power my CS4 Inground unit?

Our CS4 Inground can be powered using our LUD48 / LUD192 constant current LED drivers.

2How many CS4's can I run from a LUD48/LUD192

Using an LUD48 you can power up to 12 CS4's. Using an LUD192 you can power up to 48 CS4's (12 per output).

3I have connected all of my CS4 LED Ingrounds but they are not turning on?

Please make sure you have end terminated (supplied) your run of CS4's to ensure you close the wiring loop. See wiring diagram for more details.

4Is the CS4 an RGB/W unit?

Yes, our CS4 LED Inground is an RGB/W unit.
